Introduction¶

In this chapter we create a basic 3D scene and look at useful shortcuts. You will:

build an arch
add light and a sky environment
add a camera
write a script to move the camera with keys

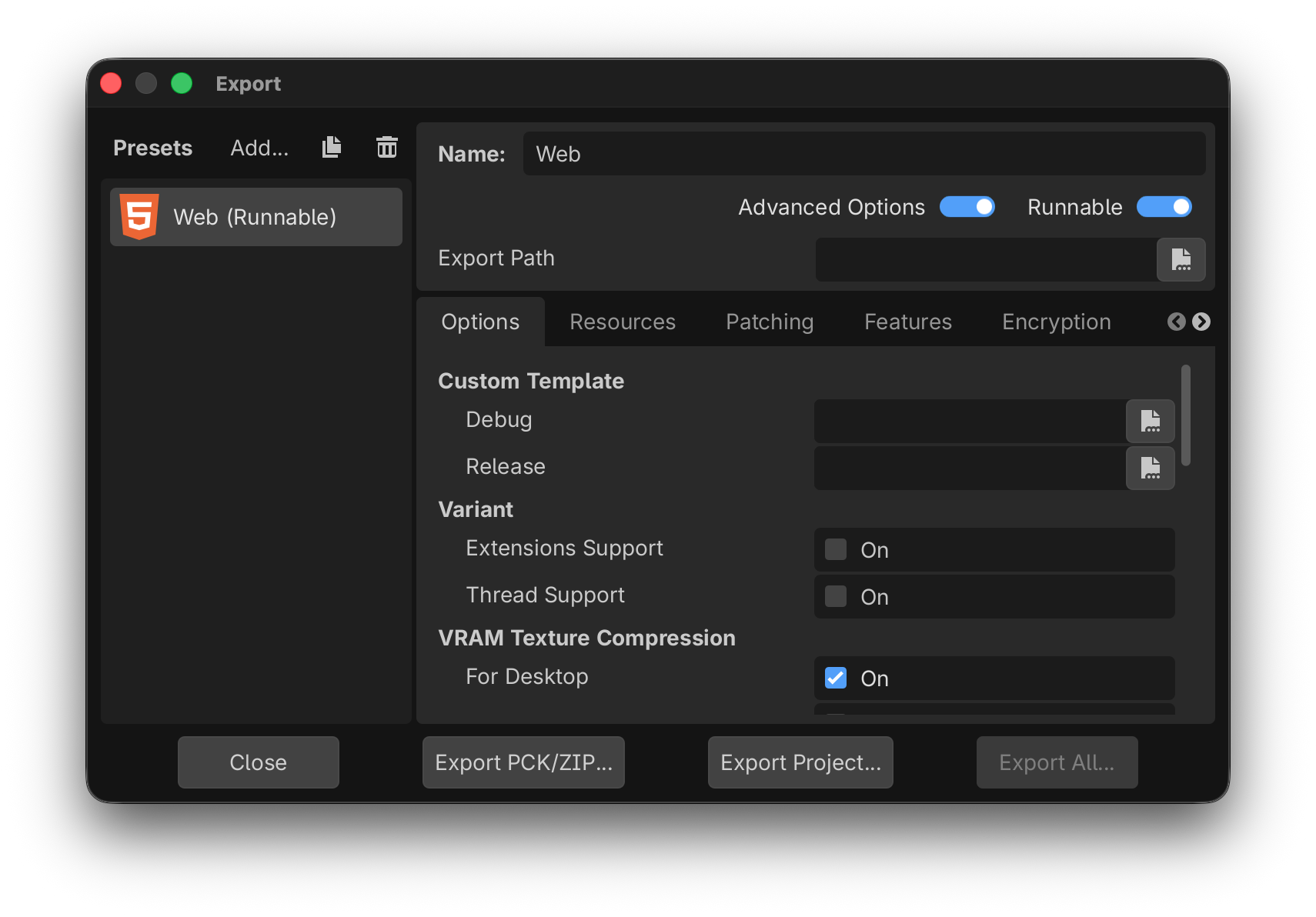

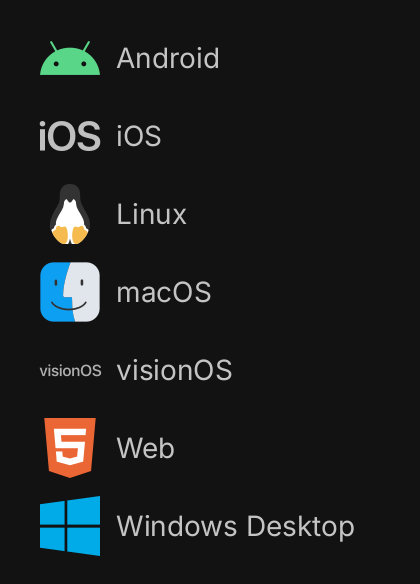

export the game to the web

Create a new project¶

Become familiar with the project manager:

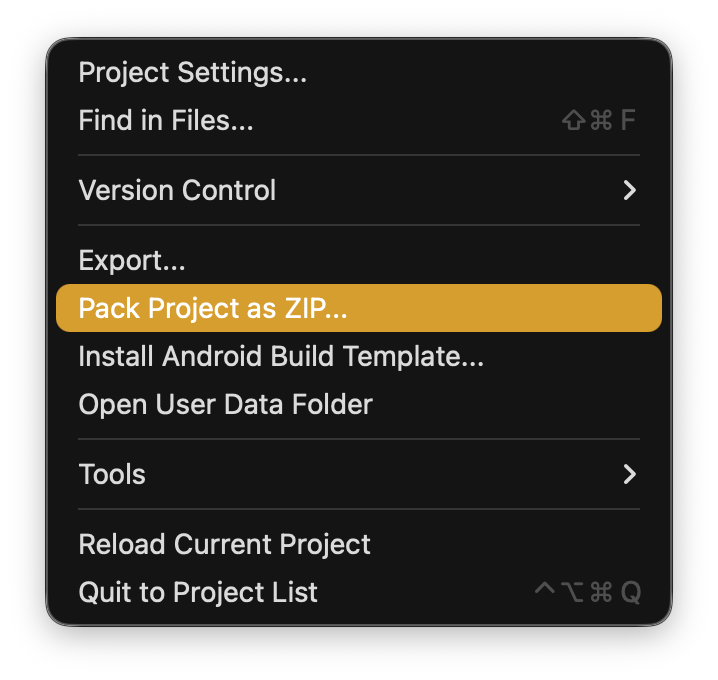

select menu Project > Quit to Project List
click on New Project
click star ★ to add/remove favorites
use filter 🔎 to restrict choice
create a new folder

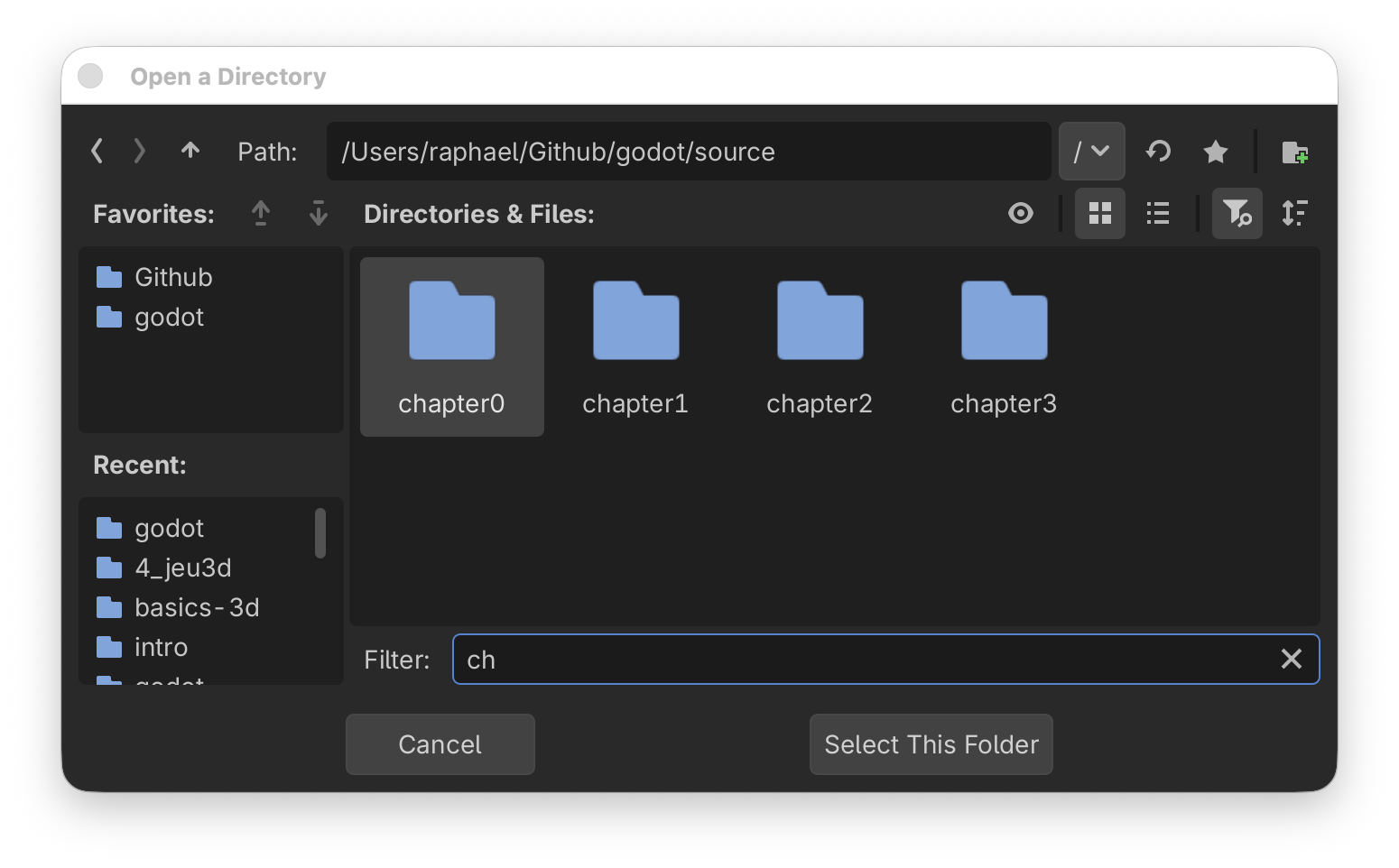

select a folder

Add nodes¶

Quickly create nodes in the scene tree:

click on Node3D to create a root node
press enter and rename it to World
use cmd+A to insert a new node

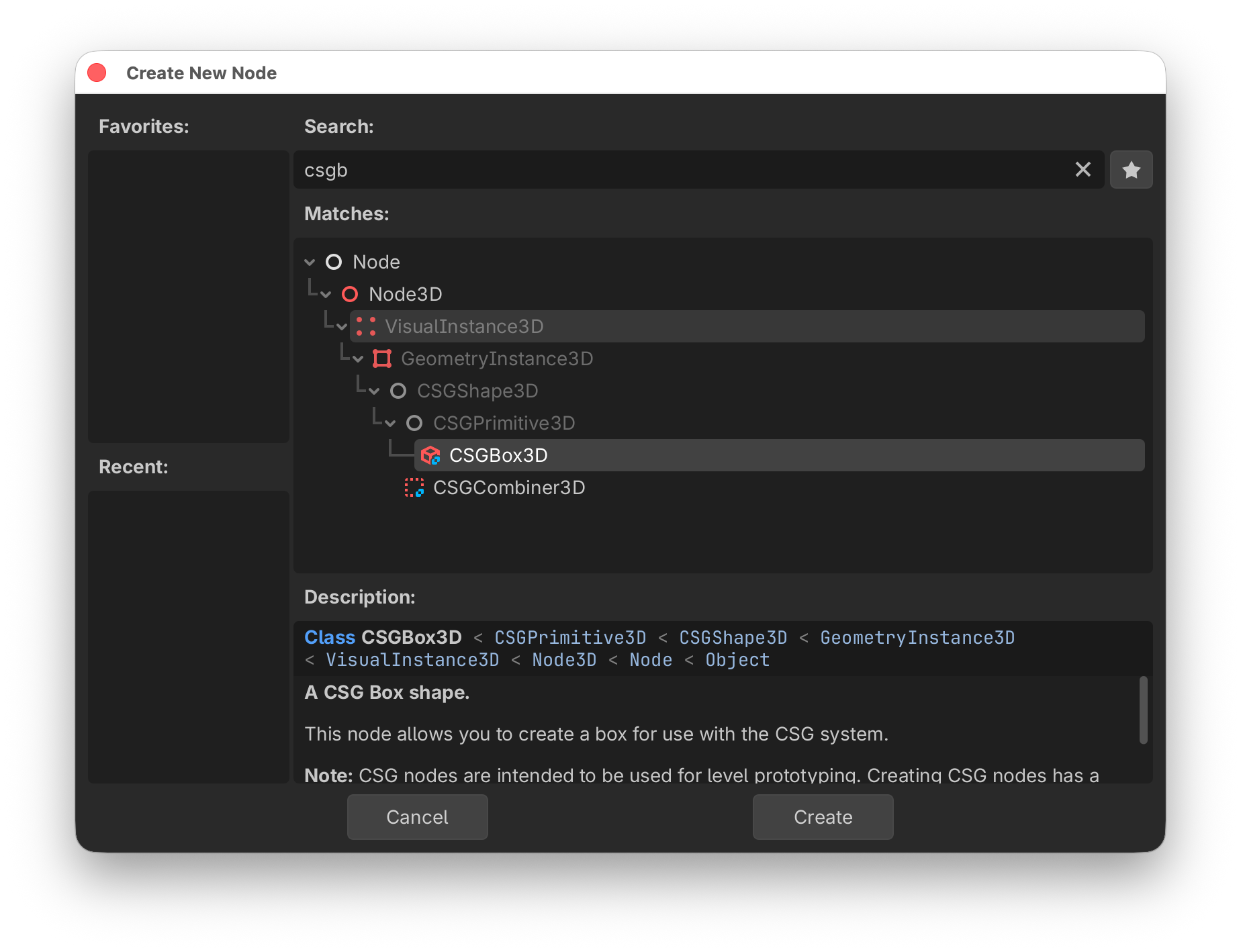

search for csgb (search for letters in that order)
select the CSGBox3D

drag the gizmo point (red dot) to create à 9x9 m box
hold alt to change symmetrically

Add more nodes¶

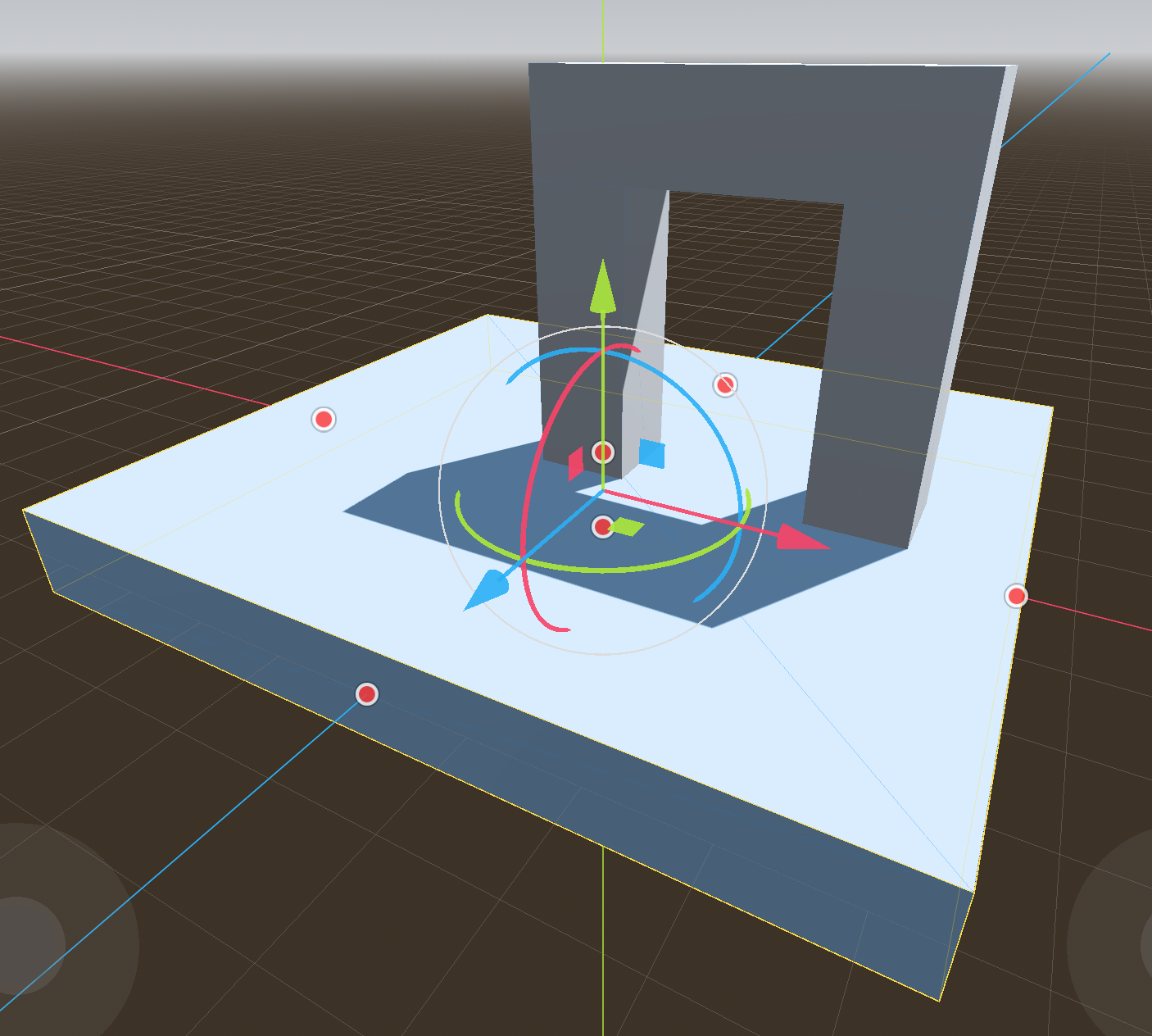

You can add quickly more nodes:

use cmd+D to duplicate nodes
use snap (Y) to lock to the grid
use the gizmo (red dots) to size the box
create 2 pillars of height 3 m
add a top bar of 4 m length

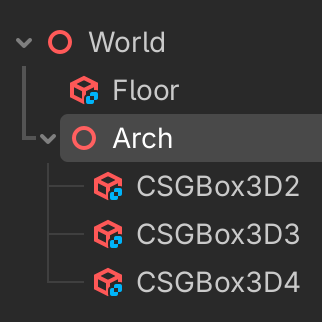

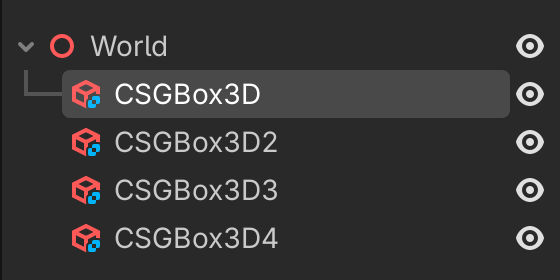

You should now have this scene tree

Axis gismo¶

With the axis gismo, by clicking on X Y or Z, you can quickly go to

X Right orthogonal view
Y Top orthogonal view
Z Front orthogonal view

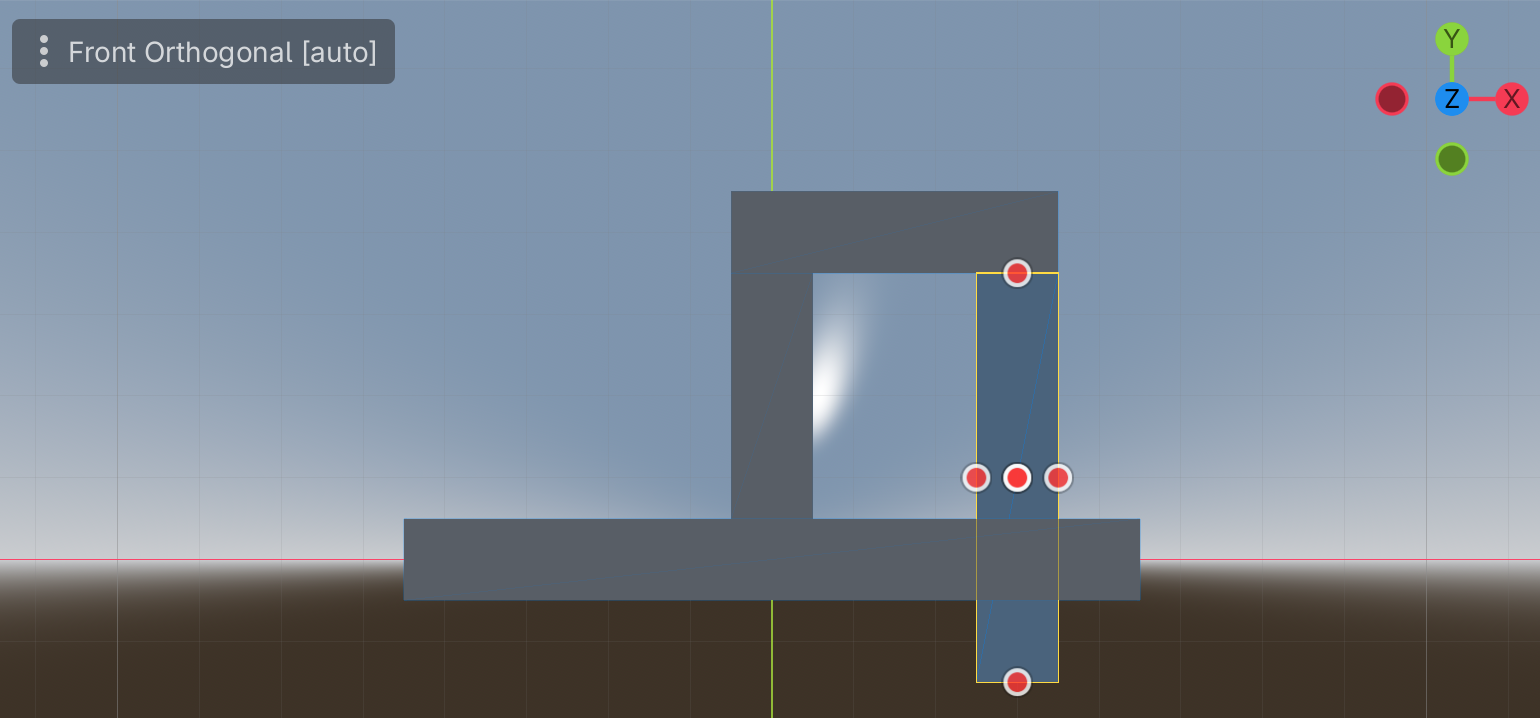

Let’s check our arch in the front view and correct it if necessary.

Tools¶

Most of the tools have a very useful 1-key shortcut and they lie in a row (QWERT).

Q move + rotate
W move
E rotate
R scale
V selection only (arrow)

The last 5 tools are:

M measuring distance (triangle)
T toggle global/local frame (box)
Y toggle snap to grid (magnet)
toggle light (sun)
toggle world environment (globe)

Moving the view¶

O places the Origin of the axis in the center
F places the selected object in the center (Focus)

The mouse allows the user to swivel around that center point of the view

with V select the top arch
with mouse x-direction, you can go 360° around the selected object
with mouse y-direction, you can go from -90° (bottom) to 90° (top)
with alt + mouse-y you can zoom the camera

Shortcuts in the scene tree editor¶

Here are a few tricks to speed up work with nodes:

cmd+D to duplicate
cmd+X to cut
cmd+C to copy
cmd+V to paste
shift+cmd+V paste as a sibling

You can use the direction keys to navigate inside the scene tree.

up/down to move inside the scene tree
left/right to open/collapse subtrees
cmd+ up/down to move a node

Fly mode¶

By pressing the shift+F the editor goes into fly mode:

the mouse cursor disappears
the WS keys allow to zoom the camera (get closer)
the AD keys allow to move left-right
the QE keys allow to move up-down
the mouse allows to orient the camera

Hint

Try to fly through the arch.

with shift+F you can quit fly mode
pressing shift makes it faster
pressing alt makes it slower

Reparent¶

It is good practice to rename our nodes and group them. First let’s rename the ground plate to Floor.

The three nodes forming the arch should be grouped. A simple Node3D node would be appropriated.

select the 3 nodes
right-click

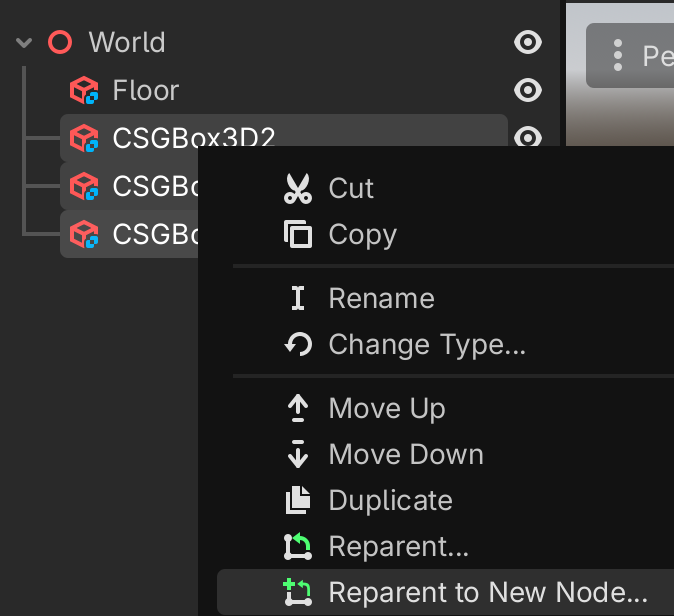

select Reparent to New Node...

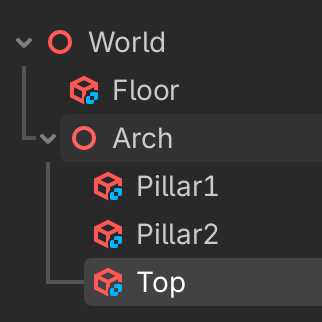

We obtained this tree.

Now rename the three nodes to something more expressive.

Play the game¶

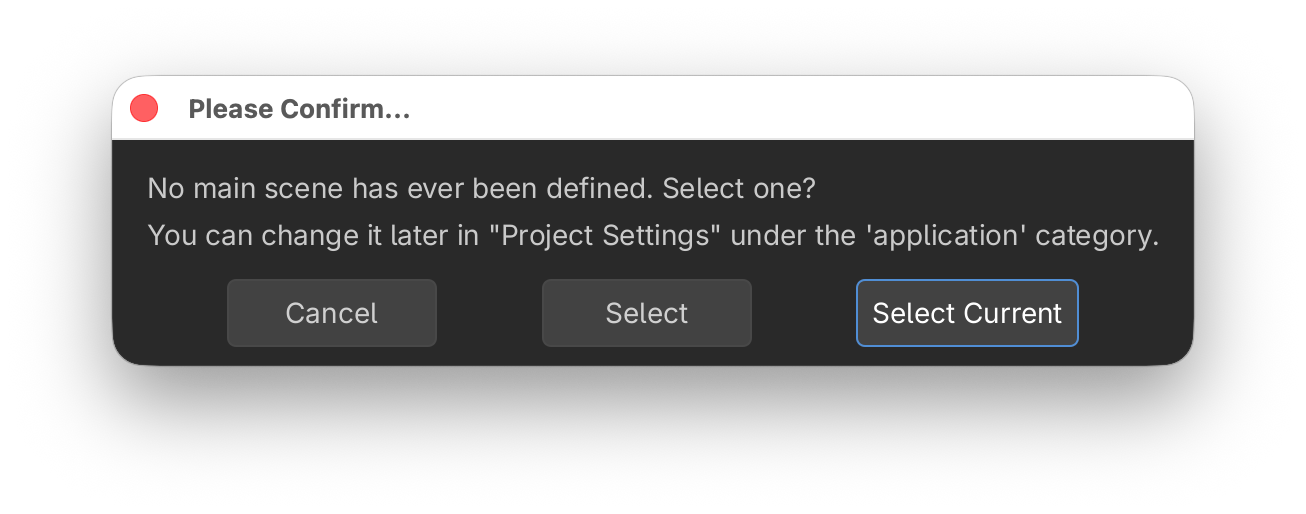

When trying to run the project’s main scene (cmd+B) we get the following message.

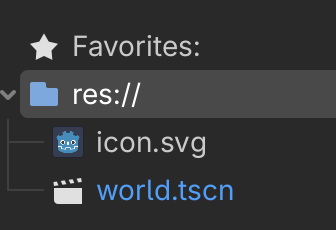

Confirm and save the scene as world.tscn. Now the scene appears in the file editor.

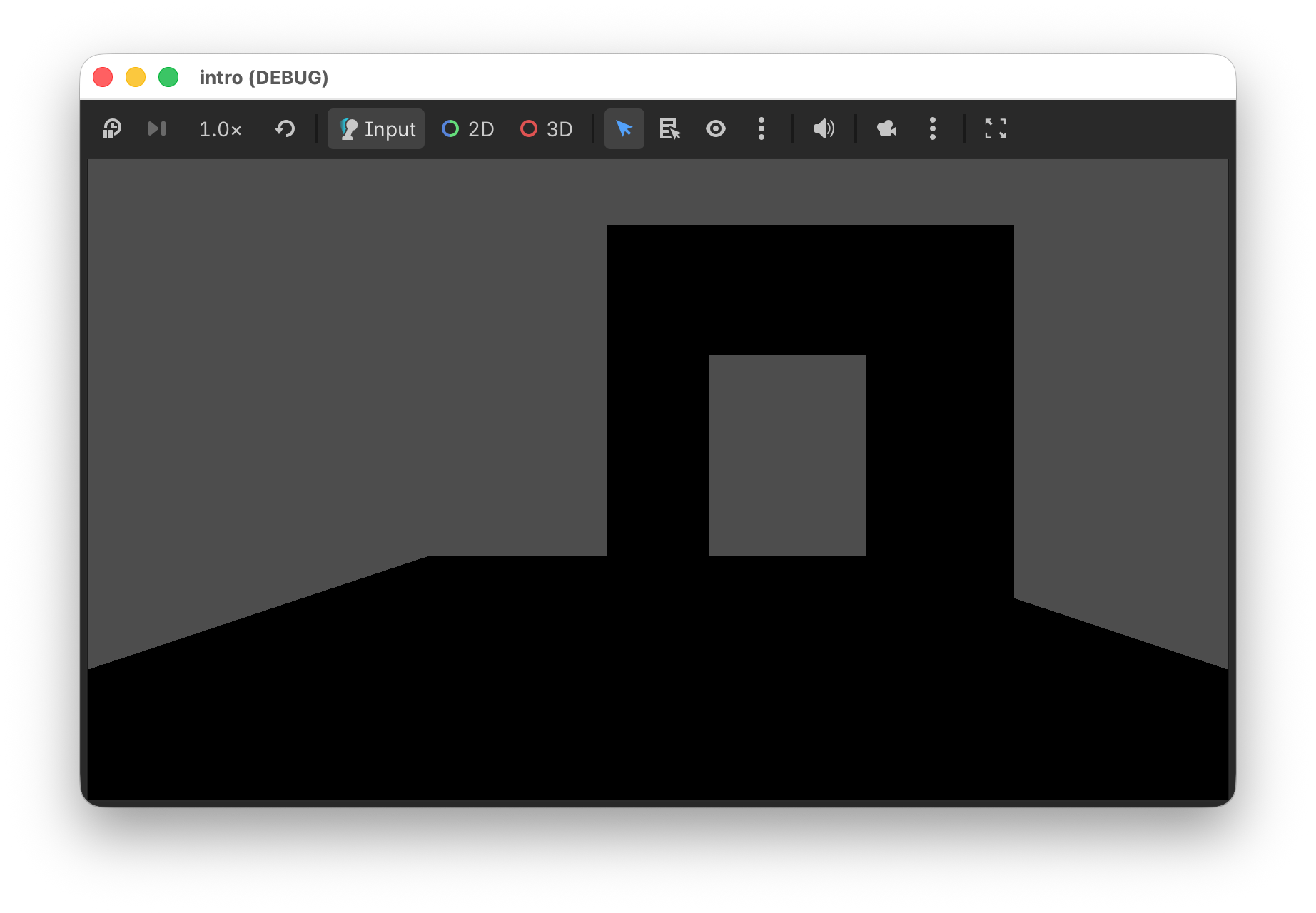

However the screen remains black. There is no camera and no light. In the meantime, let’s make the window bigger, in order to display all icons on one line.

go to menu Project > Project Settings...
select General > Display > Window
set viewport width to 1600
set viewport height to 900

Add a camera¶

select the World node
add a Camera3D node
select the move + rotate gizmo (Q)
pull the camera back 5m (blue arrow, in snap mode)
lift the camera up 2m (green arrow)

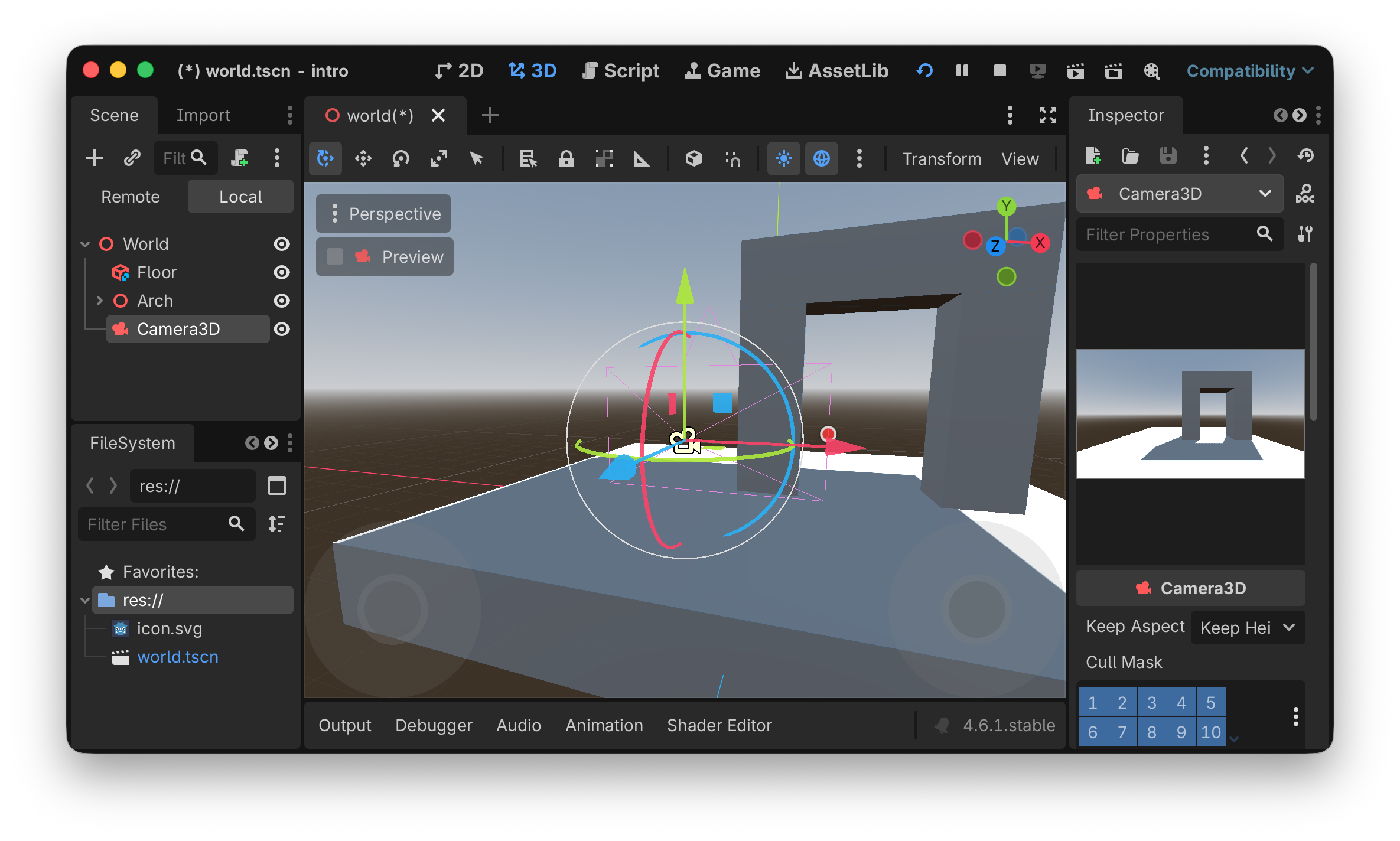

select the camera in the scene tree (left side)
observe the camera view in the inspector (right side)
you can also click the Preview checkbox to see the camera view in the main window
the camera gismo (red dot) allows to change the field of view (FOV)
this can also be set in the inspector. Set it to 70°

Try to run the projects main scene again (cmd+B). Now we see the arch, but the scene has no light.

Add light and environment¶

In the editor preview, sunlight and a sky and earth environment is automatically added.

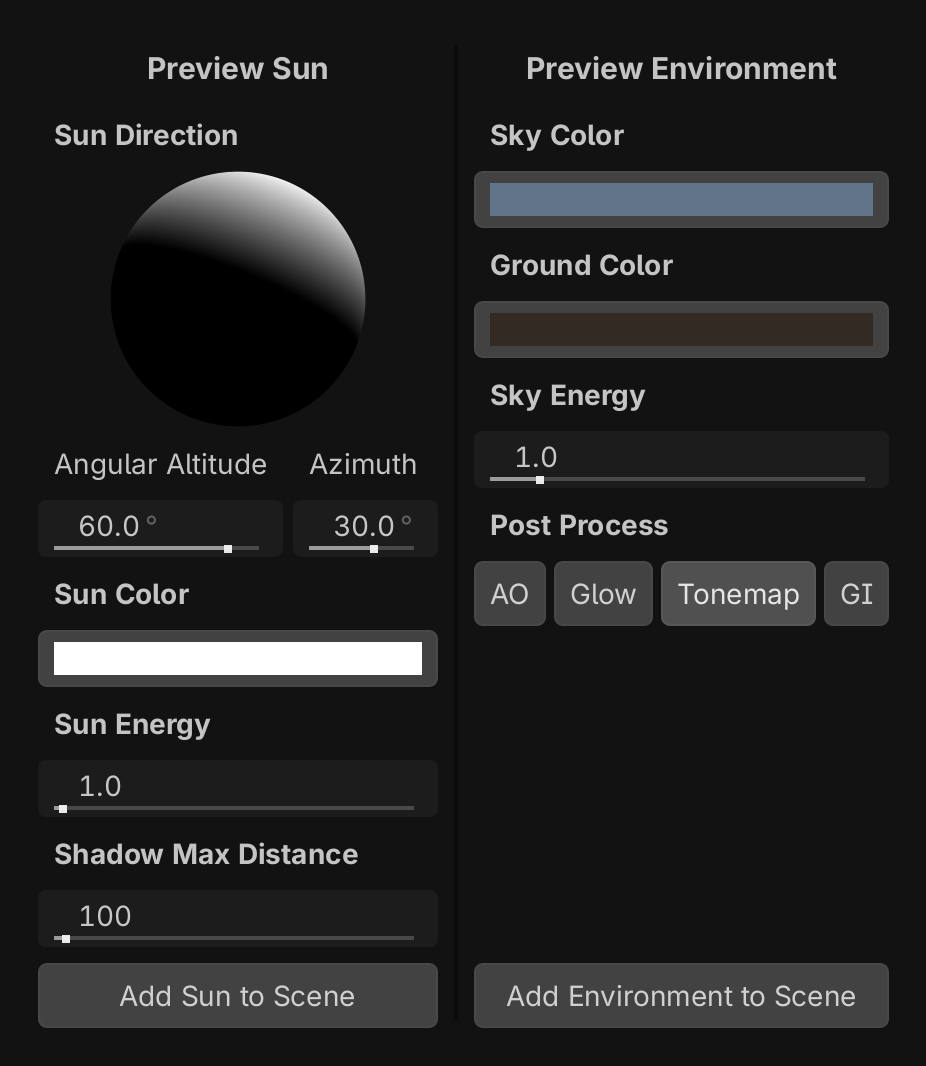

In order to add it to our scene, click the 3 dots, next to the globe symbol.

click Add Sun to Scene
click Add Environment to Scene

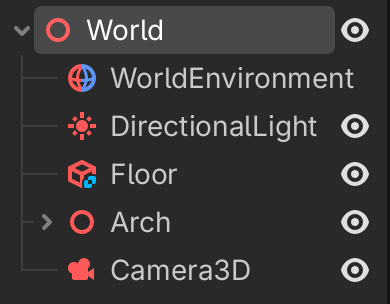

We get this in the scene tree.

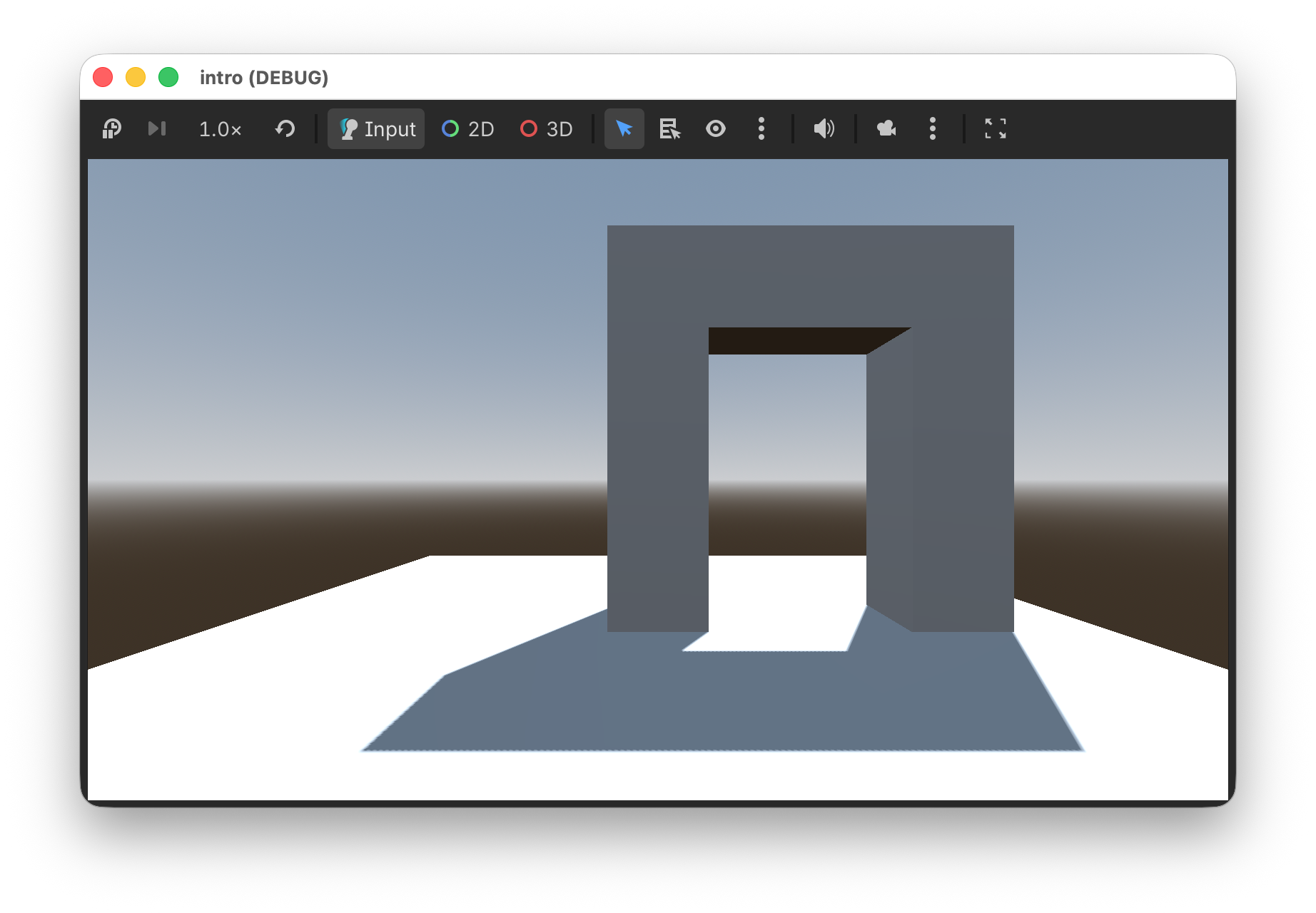

When we run the project main scene again (cmd+B), we now have sun light, a sky and a horizon.

Move the camera¶

Let’s try to create a program which imitates the free-fly behavior we have seen in the editor. First let’s define the 6 input actions.

menu Project > Project Settings...
select Input Map

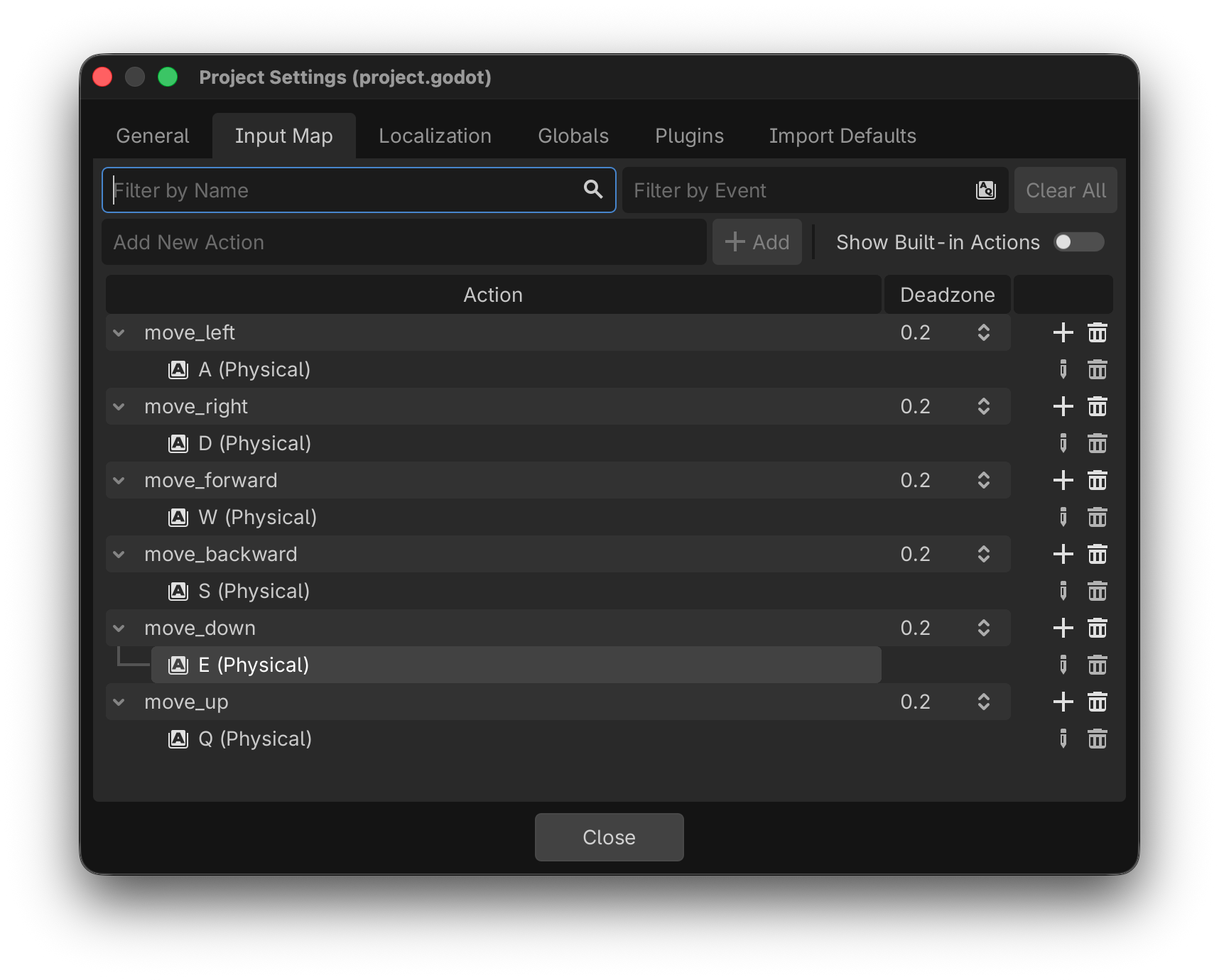

add and configure these 6 actions

select the Camera3D node
attache a script
save it

Then add this to the _process() function

func _process(delta: float) -> void:
	var input = Vector3.ZERO
	input.x = Input.get_axis('move_left', 'move_right')
	input.y = Input.get_axis('move_down', 'move_up')
	input.z = Input.get_axis('move_backward', 'move_forward')
	print(input)

This calculates a direction vector based on the 6 input actions. We see something like this in the console.

(-1.0, 0.0, 0.0)
(-1.0, 0.0, 0.0)
(-1.0, 0.0, 0.0)
(-1.0, 0.0, -1.0)
(-1.0, 0.0, -1.0)
(-1.0, 0.0, -1.0)
(0.0, 0.0, -1.0)
(0.0, 0.0, -1.0)

Now we use this value to change the position of the camera.

func _process(delta: float) -> void:
	var input = Vector3.ZERO
	input.x = Input.get_axis('move_left', 'move_right')
	input.y = Input.get_axis('move_down', 'move_up')
	input.z = Input.get_axis('move_forward', 'move_backward')
	position += basis * input * 0.1

The _process() function is called 60 times per second. So we multiply the input vector by 0.1 to obtain a speed of 6 m/s. We also use the basis matrix to rotate the vector in the camera direction. Finally we add the movement vector to the current position.

Rotate the camera¶

To change the camera rotation, we will use not the mouse, but the direction keys. They already have built-in actions.

we call the camera move direction dir and initialize it as Vector2.ZERO
we use Input.get_axis() to get the axis value (-1, 1) for two opposing keys
we accumulate the input direction in a global variable tilt
this value is used to adjust the camera rotation

	var dir = Vector2.ZERO
	dir.x = Input.get_axis("ui_left", "ui_right")
	dir.y = Input.get_axis("ui_down", "ui_up")

	if dir:
		tilt += dir * 0.05
		tilt.y = clamp(-PI/2, tilt.y, PI/2)
		basis = Basis()
		rotation.y = tilt.x
		rotation.x = tilt.y
		print(tilt)

The vertical tilt is clampted between -90° and +90°.

Finished program¶

Here we have the finished program.

extends Camera3D

var tilt = Vector2.ZERO

# Called when the node enters the scene tree for the first time.
func _ready() -> void:
	pass


# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta: float) -> void:
	var input = Vector3.ZERO
	input.x = Input.get_axis('move_left', 'move_right')
	input.y = Input.get_axis('move_down', 'move_up')
	input.z = Input.get_axis('move_forward', 'move_backward')
	position += basis * input * 0.1

	var dir = Vector2.ZERO
	dir.x = Input.get_axis("ui_left", "ui_right")
	dir.y = Input.get_axis("ui_down", "ui_up")

	if dir:
		tilt += dir * 0.05
		tilt.y = clamp(-PI/2, tilt.y, PI/2)
		basis = Basis()
		rotation.y = tilt.x
		rotation.x = tilt.y
