Basics

World environment

We start by creating the world environment

  • configure snap to 0.5

  • create a CSGBox3D of 10x1x10

  • use collision on

  • add environment to scene

  • add Sun to scene

Player

The player is the object representing the user. A camera is attached to the player in order to see the world.

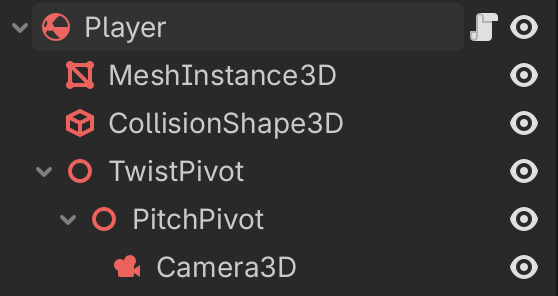

../_images/player_tree.png

Create the objects as indicated:

  • Create a RigidBody3D node and name it Player

  • Add a MeshInstance3D and make it a capsule shape

  • Add a CollisionShape3D via the Mesh button (sibling, capsule)

  • Add a Node3D and name it TwistPivot

  • Add a child Node3D and name it PitchPivot

  • Add a child Camera3D

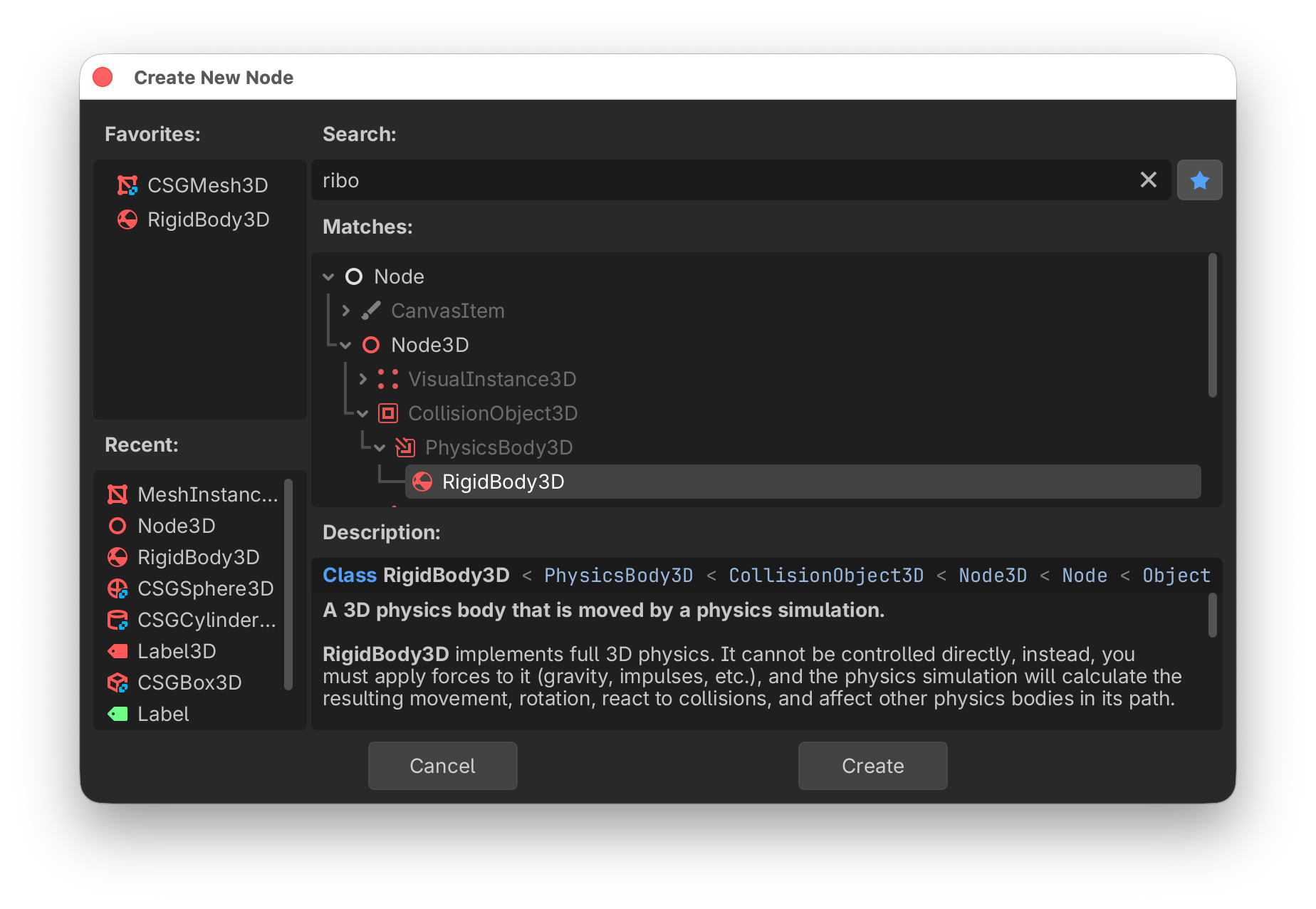

Create New Node dialog showing search results for ribo with RigidBody3D selected, displaying class hierarchy and physics simulation description

This is the GDScript to move the player.

This

func _input(event: InputEvent) -> void:
	if event.is_action_pressed("jump"):
		apply_central_impulse(Vector3.UP * jump_impulse)

	if event is InputEventMouseButton:
		Input.set_mouse_mode(Input.MOUSE_MODE_CAPTURED)

All

extends RigidBody3D

@export var mouse_sensitivity := 0.001
@export var speed: float = 50.0
@export var jump_impulse: float = 5.0

@onready var twist_pivot: Node3D = $TwistPivot
@onready var pitch_pivot: Node3D = $TwistPivot/PitchPivot

var twist_input := 0.0
var pitch_input := 0.0


func _input(event: InputEvent) -> void:
	if event.is_action_pressed("jump"):
		apply_central_impulse(Vector3.UP * jump_impulse)

	if event is InputEventMouseButton:
		Input.set_mouse_mode(Input.MOUSE_MODE_CAPTURED)


func _ready() -> void:
	Input.set_mouse_mode(Input.MOUSE_MODE_CAPTURED)


func _process(_delta: float) -> void:
	var input := Vector3.ZERO
	input.x = Input.get_axis("move_left", "move_right")
	input.z = Input.get_axis("move_forward", "move_backward")

	apply_central_force(twist_pivot.basis * input * speed)

	if Input.is_action_just_pressed("ui_cancel"):
		Input.set_mouse_mode(Input.MOUSE_MODE_VISIBLE)

	twist_pivot.rotate_y(twist_input)
	pitch_pivot.rotate_x(pitch_input)
	pitch_pivot.rotation.x = clamp(
		pitch_pivot.rotation.x,
		deg_to_rad(-30),
		deg_to_rad(30),
	)
	twist_input = 0
	pitch_input = 0


func _unhandled_input(event):
	if event is InputEventMouseMotion:
		if Input.get_mouse_mode() == Input.MOUSE_MODE_CAPTURED:
			twist_input = -event.relative.x * mouse_sensitivity
			pitch_input = -event.relative.y * mouse_sensitivity

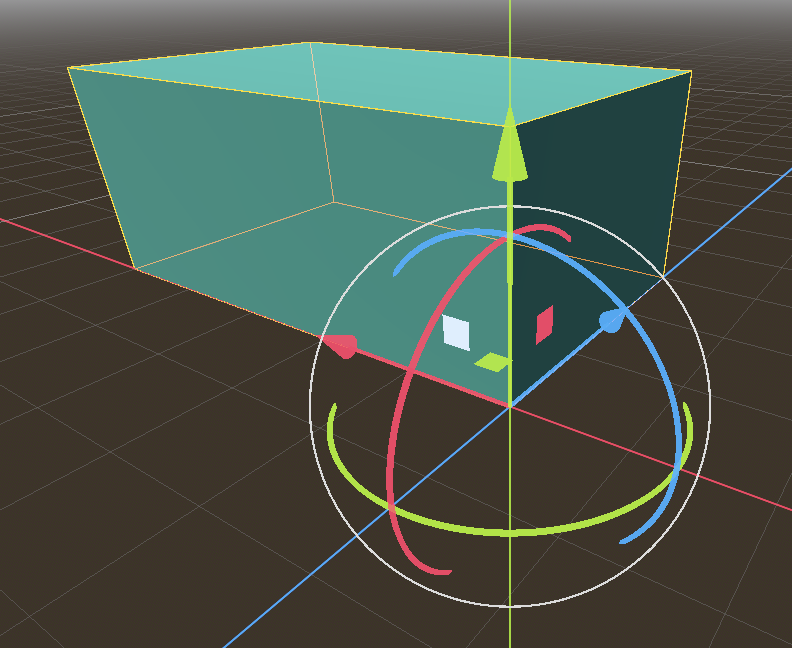

Creating a box

The following code creates a CSG box programmatically.

The @tool directive allows executing the program in the editor.

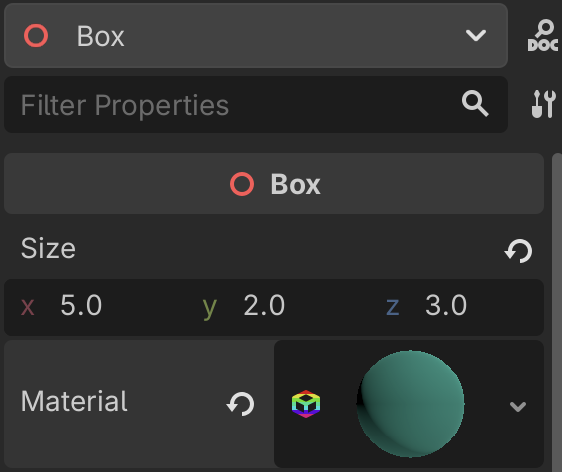

The size of the box and the material are exported to the inspector panel.

../_images/box_inspector.png

The corner of the box is aligned with the origin by offsetting the box by half of its size: box.position = 0.5 * size

@tool
extends Node3D
class_name Box
## This class creates a Box.

## The size of the box.
@export var size = Vector3(2, 1, 4):
    set(x):
        size = x
        create()

## The box material.
@export var material: BaseMaterial3D


func _ready():
    create()

## Creating the box.
func create():
    for child in get_children():
        child.queue_free()

    var box
    box = CSGBox3D.new()
    box.size = size
    box.position = 0.5 * size
    box.material = material
    box.use_collision = true
    add_child(box)

box

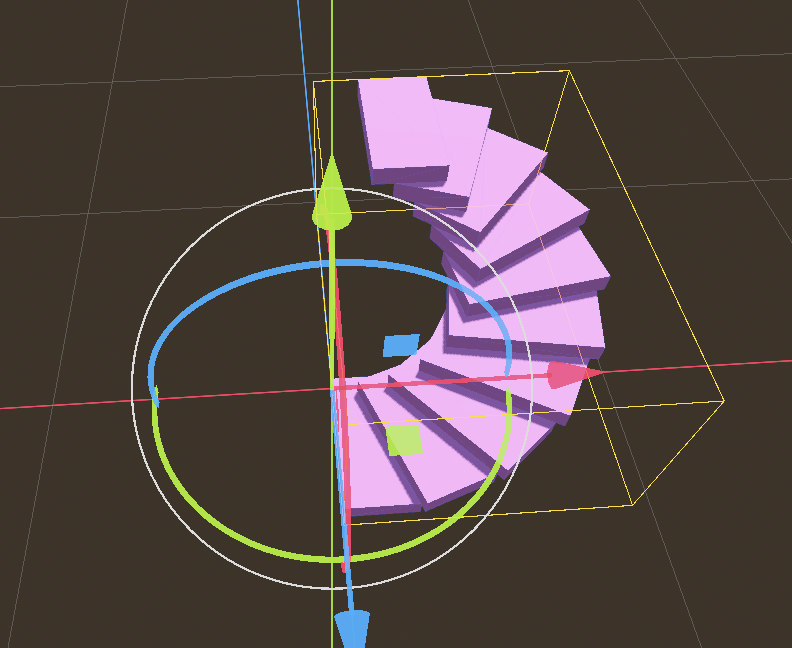

Staircase

The following shows how to build a staircase. We place a first step.

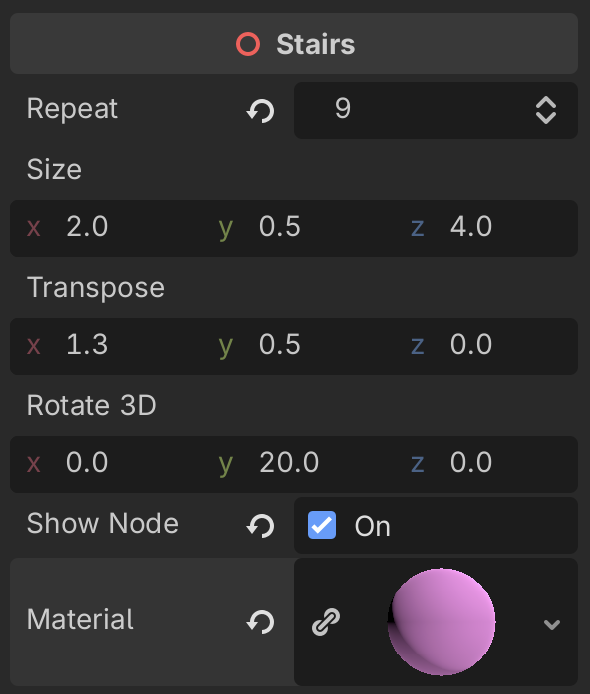

stairs

@tool
extends Node3D
## This class creates a staircase.
class_name Stairs

## Number of steps.
@export var repeat = 18:
    set(x):
        repeat = x
        if is_node_ready():
            create()

## Size of a step.
@export var size = Vector3(2, 0.5, 4):
    set(x):
        size = x
        if is_node_ready():
                create()

## Transposition vector (offset).
@export var transpose = Vector3(1.3, 0.5, 0):
    set(x):
        transpose = x
        create()

# Euler angles of rotation
@export var rotate_3d = Vector3(0, 20, 0):
    set(x):
        rotate_3d = x
        create()

# Show nodes in scene tree
@export var show_node = false:
    set(x):
        show_node = x
        create()

# Staircase material
@export var material: BaseMaterial3D


func _ready():
    create()


func create():
    for child in get_children():
        child.free()

    var box
    box = CSGBox3D.new()
    box.name = "Step"
    box.size = size
    box.position = 0.5 * size
    box.material = material
    box.use_collision = true
    add_child(box)
    if show_node:
        box.owner = get_tree().edited_scene_root

    for i in (repeat):
        box = box.duplicate()
        box.name = "Step" + str(i+1)
        box.translate(transpose)
        box.rotate_x(deg_to_rad(rotate_3d.x))
        box.rotate_y(deg_to_rad(rotate_3d.y))
        box.rotate_z(deg_to_rad(rotate_3d.z))
        add_child(box)
        if show_node:
            box.owner = get_tree().edited_scene_root
